A precision rig built
for every Mini 4WD® motor
Low-key matte black body, symmetric guard pillars, an embedded wordmark — MotorLab's exterior carries the engineering-instrument language of its Web UI, folding desktop-lab precision into every chamfered edge.

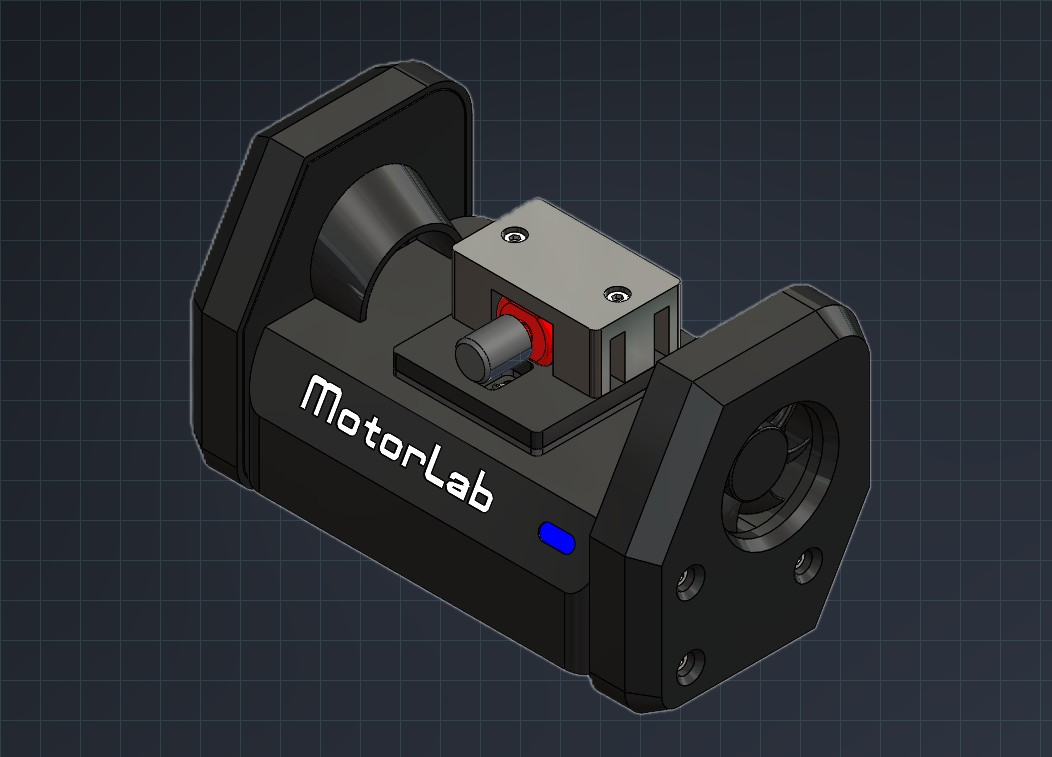

Not an appliance — a desktop lab instrument
The body is a low-reflection matte-black block. Symmetric, substantial guard pillars wrap the core module — a carry handle when moving it, structural protection while running. Every exposed element (clamp, sensor seat, cooling vent, status light) is tucked into clean folds: no decoration, only engineering.
Every detail has a function
Every visible design choice on the exterior maps to a real purpose — from clamping and cooling to status indication.
Matte black unibody
A solid block with chamfered folds; the low-reflection surface cuts desktop glare, and the front-embedded “MotorLab” wordmark makes branding part of the form.
Symmetric guard pillars
The two pillars double as a carry handle and protection — easy to grip when moving, shielding the core module while running, and keeping the whole form mechanically balanced.

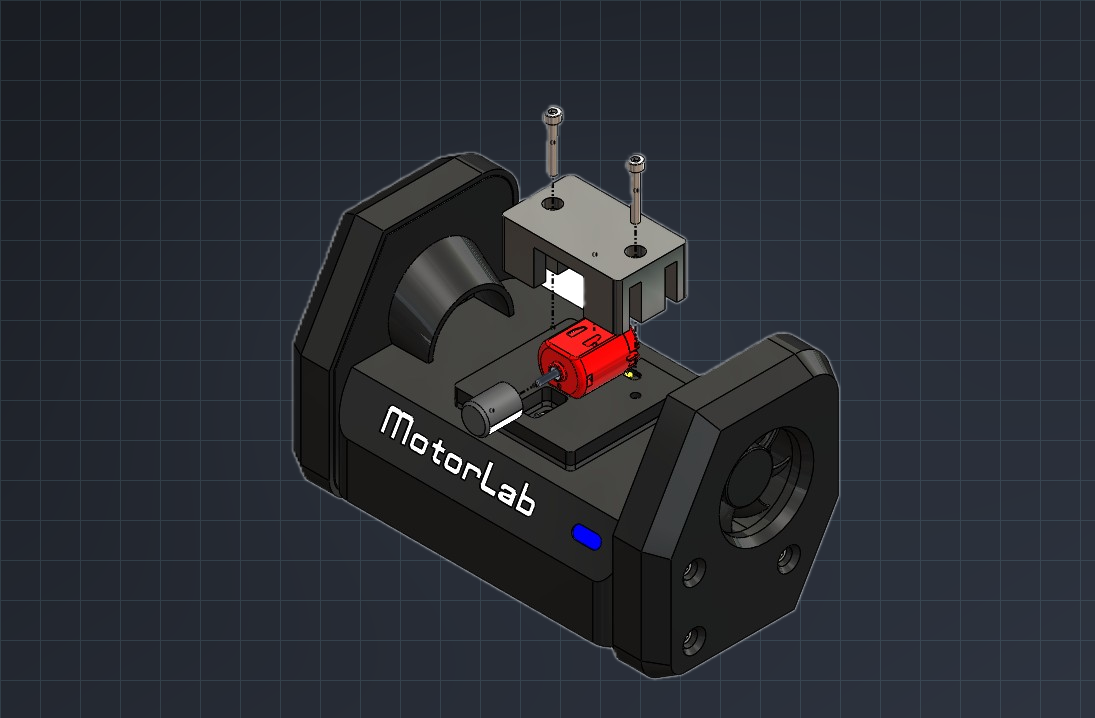

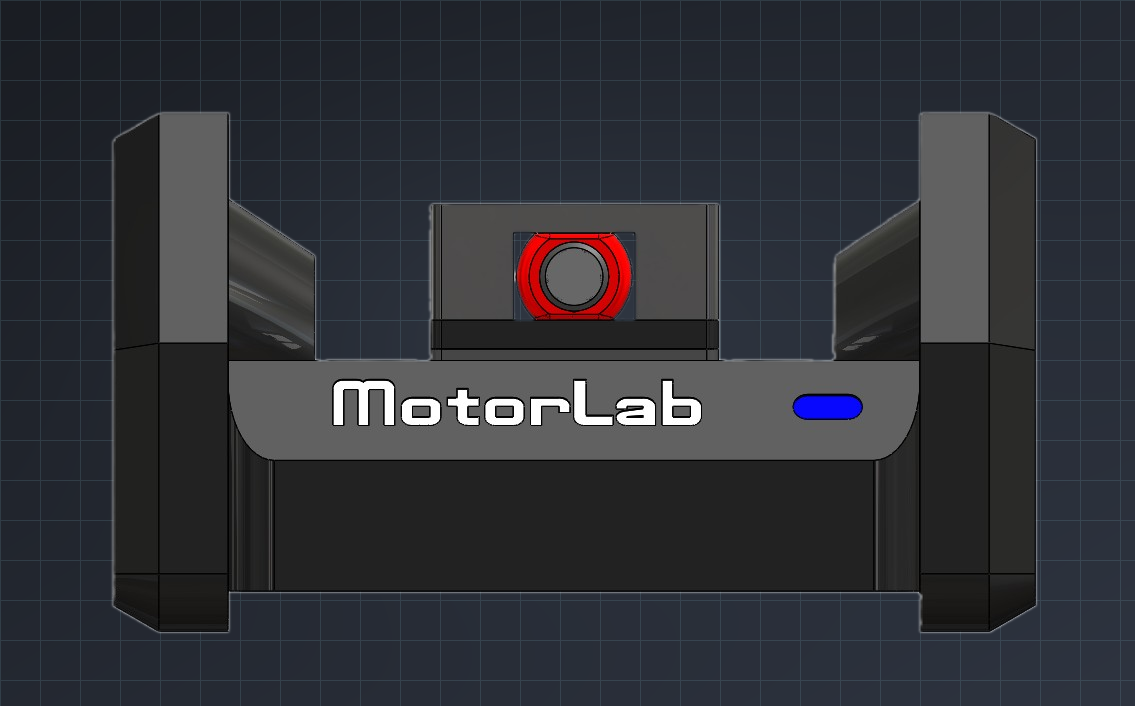

Front motor-clamp module
An anodized clamp plus sensor seat on the front: drop a motor in and it locates instantly — the visual focal point, and the starting point of measurement accuracy.

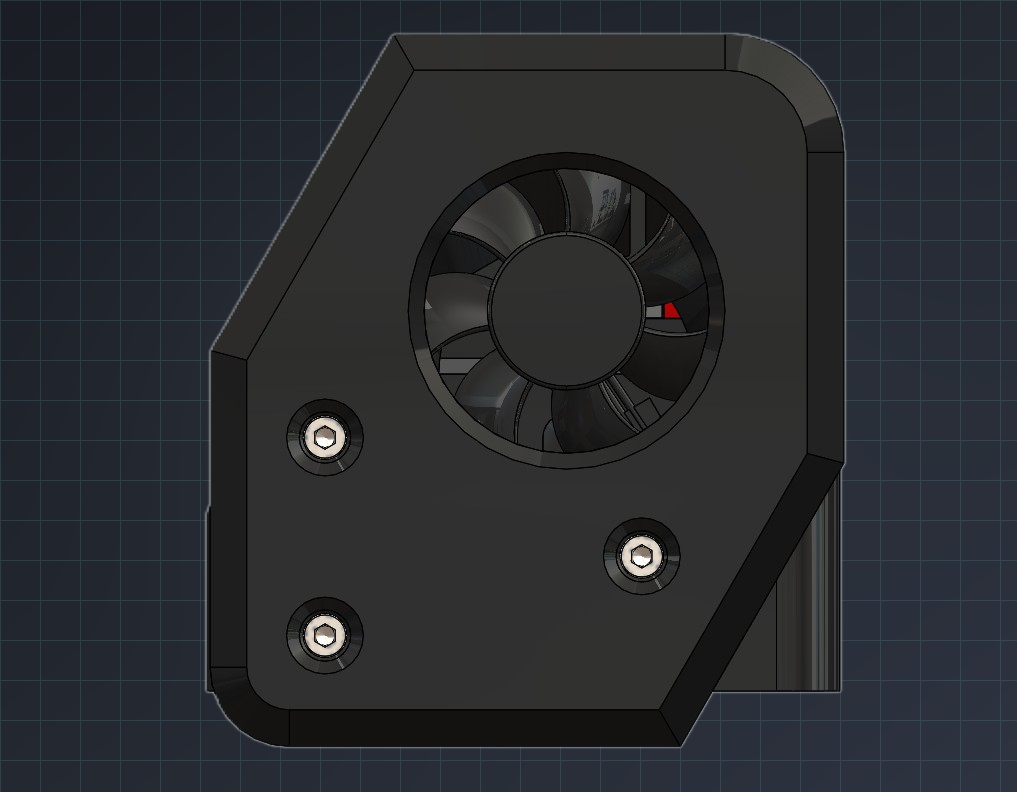

Side active cooling
A built-in fan and air channel on the side hold a stable working temperature through long break-in runs, with the airflow path tucked inside the silhouette.
Custom multi-color indicator
Read power and run state at a glance; a minimal single point of light, echoing the instrument-grade restraint.
Compact desktop size
At 160 × 81 × 90 mm it moves with one hand and slips onto any workbench or repair desk without taking over the space.

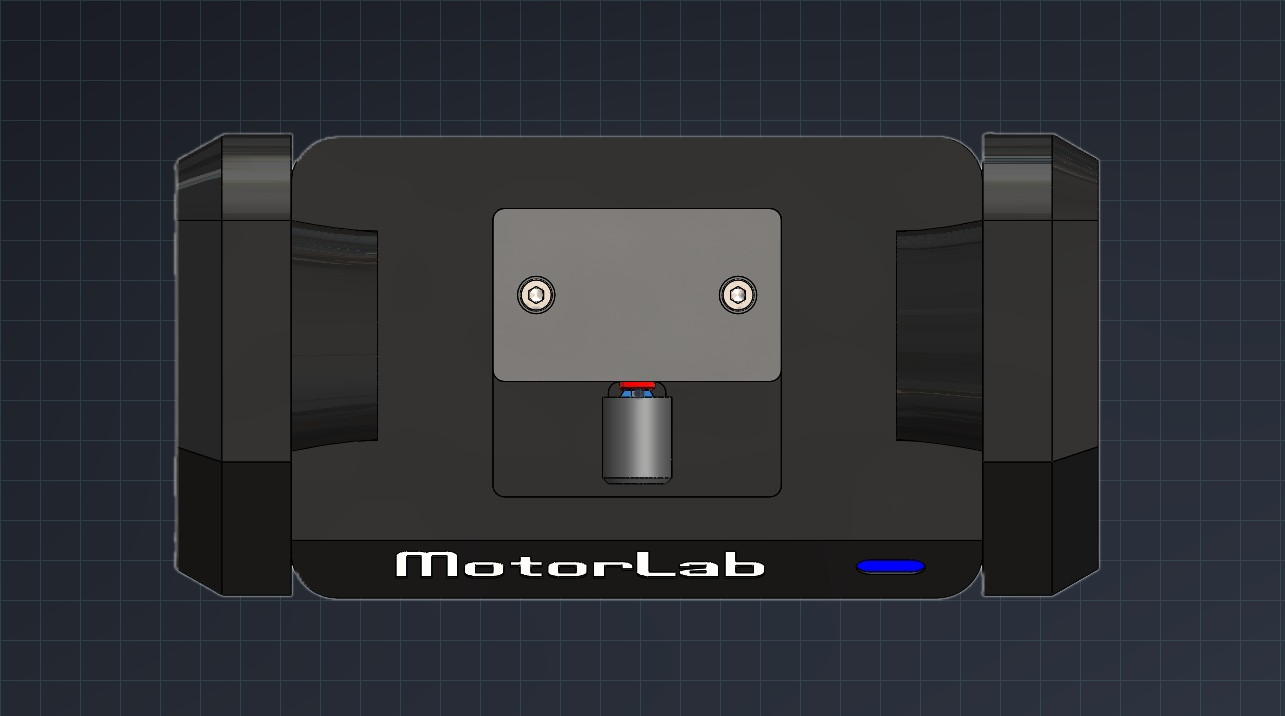

See every face, 360°

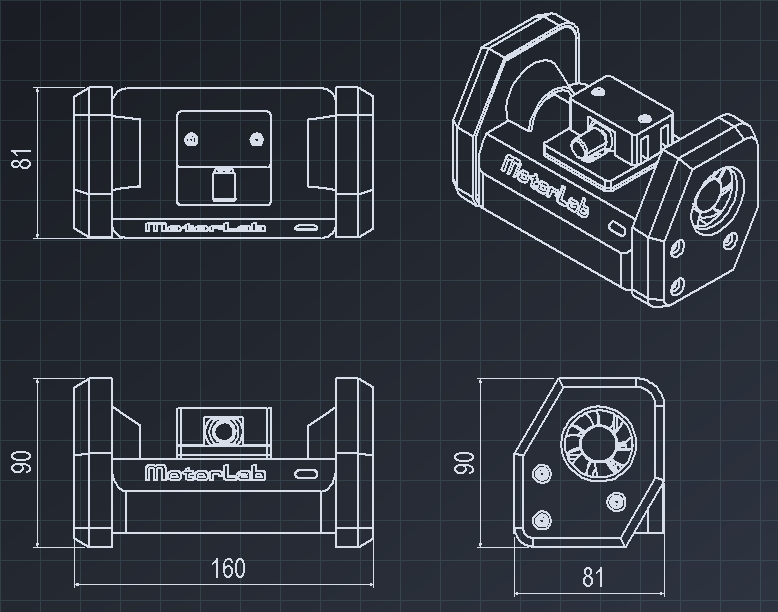

Three views & dimensions
Full three-view drawing plus an isometric view, all dimensions in millimetres (mm).
